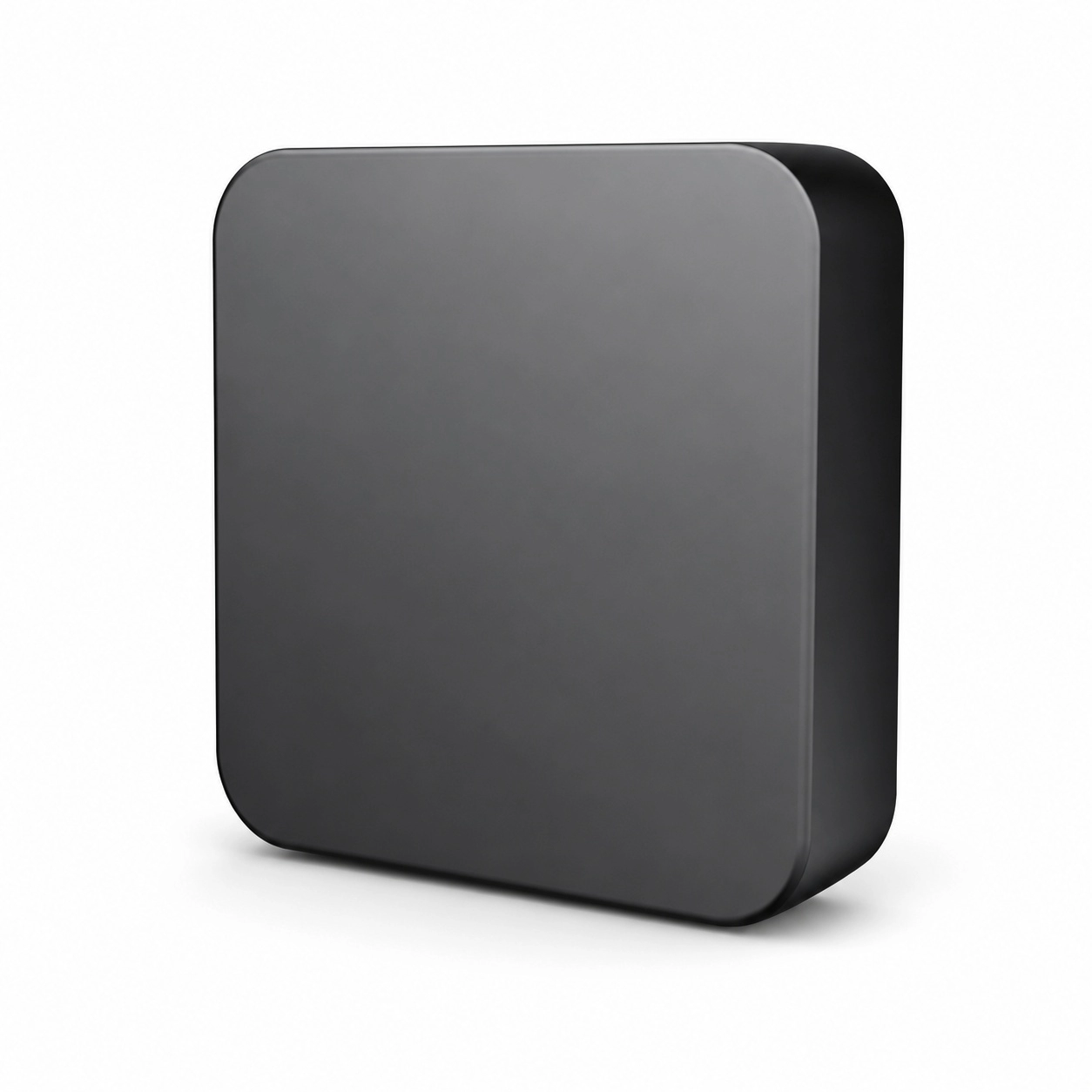

ATQ series cutting tools
Available grades: ATQ. Select the grade and model for your workpiece material, operation and required dimensions.
Grade and material selection
| Grade | Composition | Applications |
|---|---|---|
| ATQ | TiC+Al2O3 | Finishing of gray cast iron and ductile cast iron under stable cutting conditions. |
Available models and dimensions
ATQ
CNGA — 4 models
| ISO model | ANSI model | d (mm) | t (mm) | r (mm) | D (mm) |
|---|---|---|---|---|---|
| CNGA 120404 | CNGA 431 | 12.70 | 4.76 | 0.40 | 5.16 |
| CNGA 120408 | CNGA 432 | 12.70 | 4.76 | 0.80 | 5.16 |
| CNGA 120412 | CNGA 433 | 12.70 | 4.76 | 1.20 | 5.16 |
| CNGA 120416 | CNGA 434 | 12.70 | 4.76 | 1.60 | 5.16 |
CNGN — 4 models
| ISO model | ANSI model | d (mm) | t (mm) | r (mm) |
|---|---|---|---|---|
| CNGN 120404 | CNGN 431 | 12.70 | 4.76 | 0.40 |
| CNGN 120408 | CNGN 432 | 12.70 | 4.76 | 0.80 |
| CNGN 120412 | CNGN 433 | 12.70 | 4.76 | 1.20 |
| CNGN 120416 | CNGN 434 | 12.70 | 4.76 | 1.60 |
TNGA — 4 models
| ISO model | ANSI model | d (mm) | t (mm) | r (mm) | D (mm) |
|---|---|---|---|---|---|
| TNGA 160404 | TNGA 331 | 9.52 | 4.76 | 0.40 | 3.81 |
| TNGA 160408 | TNGA 332 | 9.52 | 4.76 | 0.80 | 3.81 |
| TNGA 160412 | TNGA 333 | 9.52 | 4.76 | 1.20 | 3.81 |
| TNGA 160416 | TNGA 334 | 9.52 | 4.76 | 1.60 | 3.81 |
TNGN — 4 models
| ISO model | ANSI model | d (mm) | t (mm) | r (mm) |
|---|---|---|---|---|
| TNGN 160404 | TNGN 331 | 9.52 | 4.76 | 0.40 |
| TNGN 160408 | TNGN 332 | 9.52 | 4.76 | 0.80 |
| TNGN 160412 | TNGN 333 | 9.52 | 4.76 | 1.20 |
| TNGN 160416 | TNGN 334 | 9.52 | 4.76 | 1.60 |
VNGA — 3 models
| ISO model | ANSI model | d (mm) | t (mm) | r (mm) | D (mm) |
|---|---|---|---|---|---|
| VNGA 160404 | VNGA 331 | 9.52 | 4.76 | 0.40 | 3.81 |
| VNGA 160408 | VNGA 332 | 9.52 | 4.76 | 0.80 | 3.81 |
| VNGA 160412 | VNGA 333 | 9.52 | 4.76 | 1.20 | 3.81 |
VNGN — 3 models
| ISO model | ANSI model | d (mm) | t (mm) | r (mm) |
|---|---|---|---|---|
| VNGN 160404 | VNGN 331 | 9.52 | 4.76 | 0.40 |
| VNGN 160408 | VNGN 332 | 9.52 | 4.76 | 0.80 |
| VNGN 160412 | VNGN 333 | 9.52 | 4.76 | 1.20 |
WNGA — 3 models
| ISO model | ANSI model | d (mm) | t (mm) | r (mm) | D (mm) |
|---|---|---|---|---|---|
| WNGA 080404 | WNGA 431 | 12.70 | 4.76 | 0.40 | 5.16 |
| WNGA 080408 | WNGA 432 | 12.70 | 4.76 | 0.80 | 5.16 |
| WNGA 080412 | WNGA 433 | 12.70 | 4.76 | 1.20 | 5.16 |
WNGN — 3 models
| ISO model | ANSI model | d (mm) | t (mm) | r (mm) |
|---|---|---|---|---|
| WNGN 080404 | WNGN 431 | 12.70 | 4.76 | 0.40 |
| WNGN 080408 | WNGN 432 | 12.70 | 4.76 | 0.80 |
| WNGN 080412 | WNGN 433 | 12.70 | 4.76 | 1.20 |
Manufacturing & Laboratory Strength
Founded in 2017 with backing from an experienced in-house technical team and capital participation from enterprises under Changchun New Area, Changyu Advanced Materials integrates R&D, manufacturing, analysis and technical service.
Our 50,000 m² site is supported by 300+ production units, 40+ analytical instruments, 20 national invention patents and participation in 5 national standards. The company has passed ISO 9001 and GB/T 28001-2011 management-system certification.
